Quickflange™ Weldless Connectors

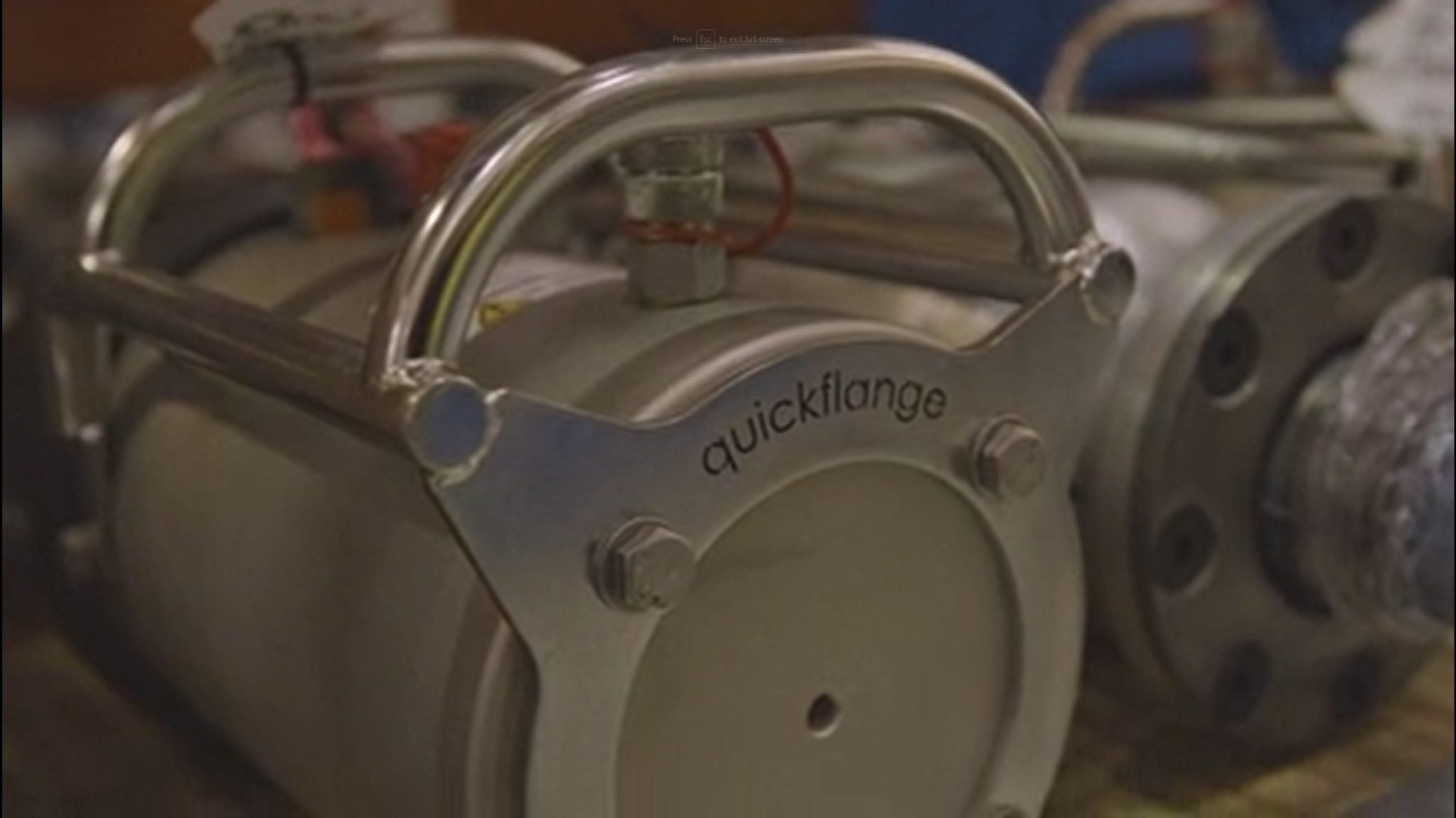

Quickflange™ tool prior to insertion
Quickflange™ logo

High performance weldless flange-to-pipe connections

For almost 20 years, our patented Quickflange™ technology has built up a proven track record as a leading provider in cold work solutions, offering clients a permanent repair option for improving pipeline integrity and flow assurance eliminating the need for welding or hot work.

With an extensive range, Quickflange™ is a safe, cost-effective and efficient solution generating up to 80% time saving over traditional welding.

At A Glance Enquiry Lifecycle Analysis Report
Quickflange render 11

Quickflange™ Technology Overview

Our mechanically robust weldless flange-to-pipe connection utilises a modified standard flange where patented internal grooves are machined in such a way that it slides over the pipe end. By combining our Quickflange™ connector with our bespoke activation tool, the installation process is both quick and easy.





Quickflange™ Installation Process

Once the line is isolated, a straight cut is crucial to ensure the Quickflange™ sits flush to the pipe edge. The hydraulic tool is aligned into the pipe and activated to the required pressure. During this process, the cone of the tool quickly extends allowing the segments to flare – swaging the pipe into the pre-machined grooves of the Quickflange™ connector. The tool is then reversed, concluding the installation and creating a permanent gas-tight seal.

Quickflange tool range

Quickflange™ Product Range

Our connectors span across a wide range of pipe sizes, pressure classes and most importantly material types, particularly material types that pose a challenge to welding.
Size Range: ¾” to 14”
Material Range: Carbon Steel, Stainless 316, Duplex, Super Duplex, 6Mo, Copper-Nickel & Nickel Alloy.
Pressure Range: 150# to 900# available up to 2500# on request.
Type Approvals: DNV & ABS

Confined space Quickflange repair

Confined Spaces

Quickflange™ is ideal where welding habits or welding in general would not be possible
Remote location by rope access offshore

Remote Locations by Rope Access

Our tooling can be rigged into position or handheld to easily reach remote locations. We can also train 3rd party personnel in the installation process.
Piping repair - quickflange

Piping Repairs

Quickflange™ is an ideal option for repairing pipework permanently – saving on average 80% time over welding.
QuickFlange weldless connector heat proximity

Close Proximity to Heat Affected Zones

Quickflange™ can be installed as close to 20mm from the heat-affected zone of a weld.
Hydrocarbon gas and liquid systems Quickflange™ repair

Hydrocarbon Gas and Liquid Systems

Quickflange™ is type-approved for use on hydrocarbon gas and liquid services with a proven track record over 2 decades.
Pipework modifications

Pipework Modifications

Whether an asset or site requires modifications, a new spool tie-in or a system needs to be rerouted, Quickflange™ is an ideal solution where hot work is not always a safe, cost or time-effective option.
Pipework construction

Pipework Construction

Multiple Quickflange™ installations can be carried out in the same shift – maximising productivity – ideal for system replacements/construction where time is limited.
Decommissioning Quickflange™ repair

Decommissioning

Quickflange™ is an ideal option to cut and blind off lines no longer in use.
Lindsay Anderson outside ICR HQ

“With a strong track record of performing permanent repair solutions, we have achieved 80% time reduction for our clients through our patented Quickflange™ solution.  This highlights how weldless technology has an essential role to ensure flexible and quick integrity solutions.”

Lindsay Anderson, Head of Sales

Extensive Range

We can accommodate ¾” – 14” pipework in all common piping materials across 150# – 900# pressure classes however our range is continually expanding with new qualifications

Time Saving

Our simple and fast installation process generates an 80% minimum time saving over welding

Proven Track Record

Proven Track Record 20 years’ experience across the global energy sector with further diversification into new industries.

Environmental Benefits

Quickflange™ is a 100% cold work solution with zero emissions generated.

Accreditations

Quickflange™ has gained industry recognised approval through our DNV and ABS Type Approvals

Permanent Repair

This simple technology offers a permanent gas tight mechanically strong connection ideal for pipework repairs, modifications, new spool tie in or decommissioning of lines.

Applications

Our industry recognised accreditations allow us to work on a variety of line medias from firewater systems through to hydrocarbon liquid and gas.

3rd Party Training

We are committed to training and cross skilling our clients and partners globally. By allowing local teams to carry out scopes around the world ICR can further reduce our carbon footprint.

We are committed to the future of a low carbon economy through our specialist services and our technological innovation
